Why should you use compose versus variables in apply-to-each action?

Summary

If you have large Power Automate flow and you have used a lot of variables and have looping, I bet your flow performance is not good. If that is the problem, please keep reading you may benefit from this post.

Few simple facts:

  1. The Power Automate looping can run in concurrency. In other words, the actions like apply-to-each or do-while can run concurrently in parallel.
  2. If in the loops the variables is modified using append-to-variable action, internally Power Automate puts the LOCKS on the variables. This is by design so any other area of the concurrent code does not modify the value at the same time.
  3. This lock and unlock of variables takes time and your flow suffers from the performance.

DON’T use variable modification in the loop.

What is the solution?

The answer is to use the Compose. You may ask, but wait? the Compose action is by design to put the constant values.

Yes, that is correct the Compose action is for the constant. But there is a technique to get the values out from the loop using Compose.

Step By Step Solution

To demonstrate the issue and solution I will make use of the Compose and Variable actions in the parallel flow. I will create an array of integers using the range method.

Step # 1 Create the Manually trigger flow

Step # 2 Add a Compose Action with expression as follows. Rename it to ‘const array’

range(0,100)

Step # 3 Add an Initialize Variable with Name as ‘array’ and type as an ‘Array’ and add the same above expression for Value. Rename action to ‘var array’

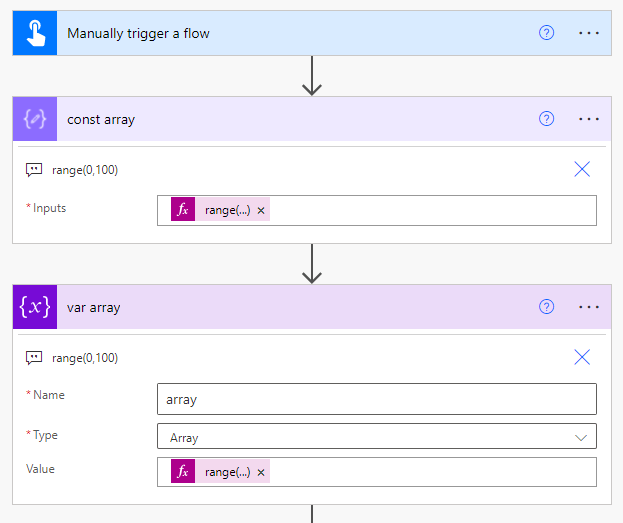

After step # 3, you will have something like this.

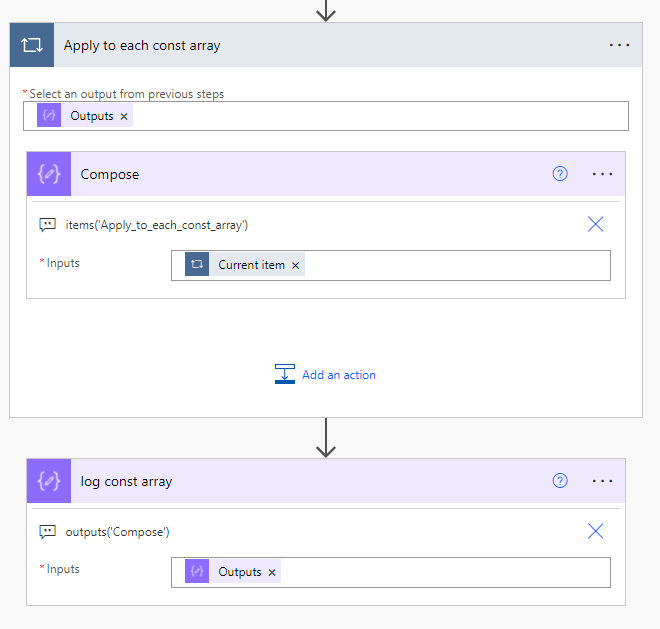

Step # 4 Add Apply to each action and rename to “Apply to each const array”

Step # 5: Inside this apply-to-each add a Compose action with expression for “Current Item”

Step # 6: An important step, add a TEMP Compose 2 action and expression as the output of the above Compose.

Step # 7: Using the peek code take the expression value. It should be like the following. You need only bold values from it.

{
    "inputs": "@outputs('Compose')"
}

Step # 7: Add new Compose 3 action “Outside” of the apply-to-each loop. In the expression using the above expression. Rename it as ‘log cont array’

Step #8: You do not need the Compose 2 action we added in Step 6. So delete it now.

After step 7, you should have the flow as shown above.

Step # 9: You now will add the parallel branch next to the previous apply-to-each action. Add Initialize variable steps with Name as ‘results’, Type as an ‘Array’, and value as two square brackets [].

Step # 10: Add second apply-to-each on the ‘array’ variable rename it as ‘Apply to each var array’

Step # 11: Add ‘Append to array variable’, pick the results variable and Value as the ‘Current item’ of the second apply to each action.

Step # 12: Add the final Compose to display the results variable. Name it as ‘log var results’

After step 12, the flow should be like the above.

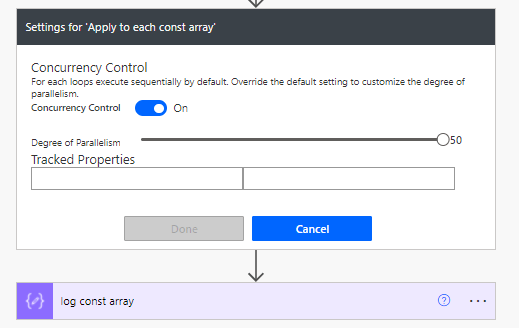

Step # 13 Finally you want to turn on concurrency for both the flows. Click on the ‘Settings’ for both apply-to-each actions. Turn on the concurrency and set parallelism to 50.

setting parallelism

Run the flow now and see the results. I get the following results.

The Compose inside the loop finishes in 2 seconds whereas the variables in the loop take 12 seconds.

using Compose inside the loop vs variables.

Nott: You can download and import the above sample flow in your environment. The export zip file is located here.

Conclusion

Obviously, the compose action gives better satisfactory performance over the variables for using inside the loop. Additionally, concurrency with parallelism provides better performing flow.

I have just re-wrote the same technique Pieter and John Lui have presented or blogged about this method.
